IT3 - Bergamo
The Global Cloud Data Center is a data center campus with a surface area of 200,000 m² in Ponte San Pietro (BG), just a few minutes from Milan.
At the IT3 Data Center, with 24/7 armed security on all its multiple control perimeters, traffic can be exchanged with all the operators on the Milan Internet eXchange in Milan, thanks to the MIX Point of Presence.
All facilities have been designed and built to meet or exceed the highest levels of resilience, in accordance with ANSI/TIA-942-B-2017 Rating 4 requirements and the ISO 22237 standard, the international benchmark standard for the entire life cycle of a data centers (strategic conception - building - operation).
Rating 4 ANSI/TIA-942 and ISO 22237 certification
+ 200,000 m²
Campus surface area
45 MW
IT power achievable
(60 MW total power)
Carrier neutral
PoP of Tier 1 operators
.webp)
.webp)
The Global Cloud Data Center is located within an area of 200,000m2 in the municipality of Ponte San Pietro (BG).
See the buildings and the data rooms of Global Cloud Data Center.
The Global Cloud Data Center is equipped with systems boasting the highest level of efficiency, in which all components are redundant and monitored constantly by the Building Management System (BMS).
The double multi-modular power center is made up of sealed, independent containers.
The hydroelectric plant on the River Brembo.
The different phases involved in creating the campus, data hall and all the surrounding facilities.
Huge expansion area
Surface area of more than 200,000 square meters
Easily accessible
Three international airports within a radius of 100 km
Renewable resources
Production of hydroelectric and photovoltaic energy
Ground water cooling system
Incredibly efficient cooling system using groundwater
Hydrogeological safety
Raised area not subject to flooding (map showing rivers from the territorial government plan/PGT for the Municipality of Ponte San Pietro)
Seismic security
Zone 3 (low level seismic activity): there have not been any confirmed earthquakes in the last 2,000 years (source: Catalogue of strong Italian earthquakes/CFTI from the National Institute of Geophysics and Volcanology/INGV website)
From the two Main Distribution Areas (MDA), positioned on opposite sides of the data hall, connectivity is distributed in each data room.
Nozzles that spray inert gas (IG-541) are fitted under the floating floor in the data hall and are silenced to protect the hardware.
Double insulation system in steel and reinforced concrete to guarantee thermal insulation for the data rooms and water resistance for the whole structure.
The data hall is made entirely of REI 240 firewalls and divided into 10 independent data rooms, each one 1,000 m², separated by REI 120 firewalls.
The spacious upper technical area created by the 3-meter high crawl space makes it easier for the hot air to circulate, reducing load loss to a minimum.
Floating floor 2 meters high with a maximum load of 2,400 kg/m² for an efficient air-containment system with no turbulence.
The surfaces of the data center that are most exposed to sunlight are covered with photovoltaic panels that help produce huge amounts of clean energy.
The power center is made up of containers in which there are: medium voltage (MV) switchgear panels; UPS systems; batteries (BAT.); switchboards and transformers (PC).
The two cooling rooms contain heat exchangers (2N redundancy) where the primary and secondary hydraulic circuits meet.
The air/water chillers can start working to cool the primary cooling circuit partially or fully.

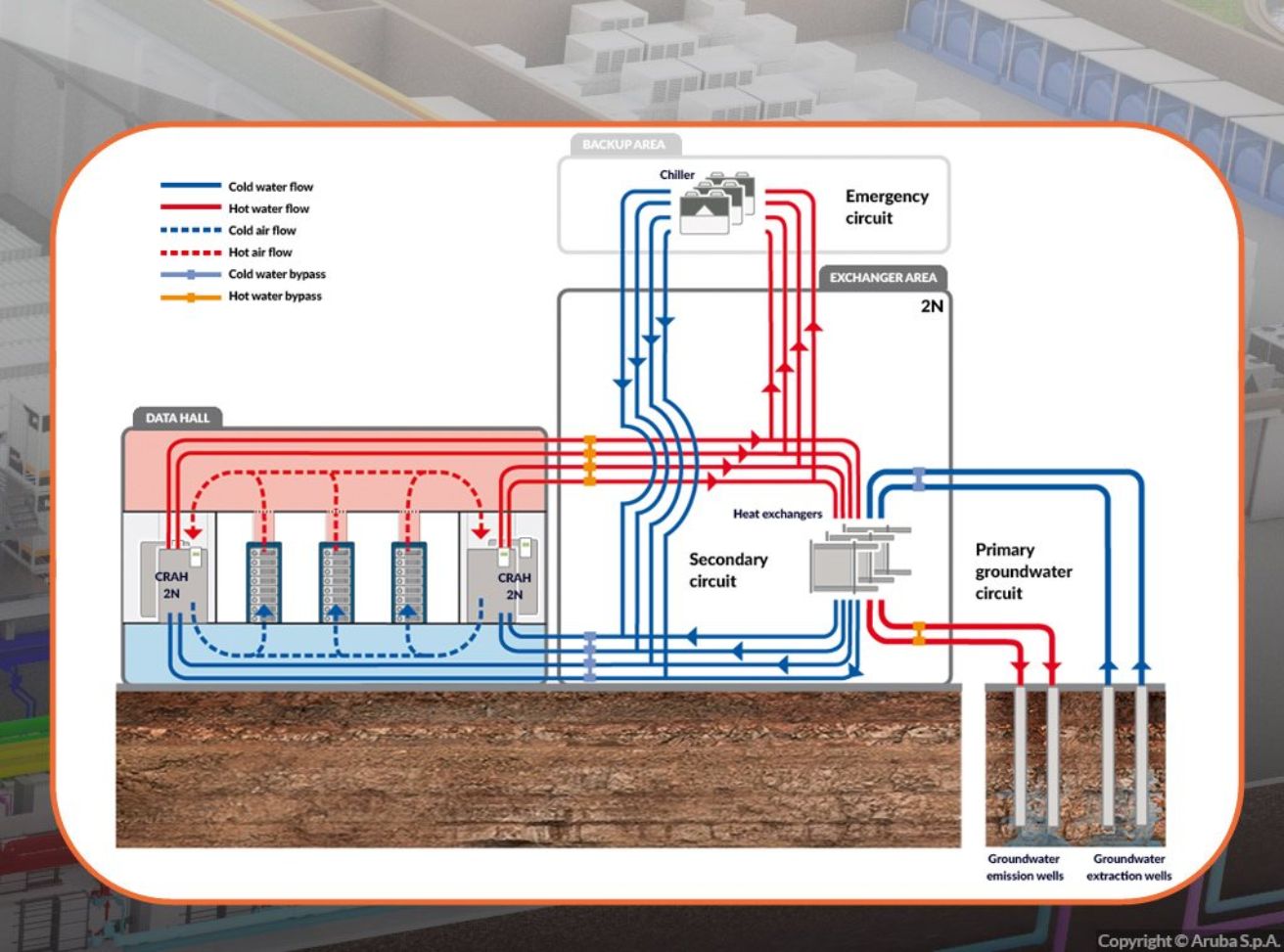

Diagram showing how geothermal cooling works
A trained fire-fighting team with a dedicated vehicle is always available on campus.
The dual power center contains redundant modules made up of containers that are easy to scale and replace. Each module is made up of 4 stacked containers: 2 for the batteries, 1 for the UPS and 1 for the power center.
The groundwater cooling system for the primary circuit works on the heat exchangers (2N redundancy) that cool the secondary circuit towards the data rooms. The air/water cooling chillers only start working in an emergency.
Carriers with fiber: TIM, Fastweb, Wind | Tre, Vodafone, Retelit, Cogent, Irideos, Planetel. A dual transmission system to Milan Internet eXchange (MIX) facilitates interconnectivity with tens of further national and international carriers. Provision of managed connectivity available on request.
The data center has been designed to exploit all the possibilities to minimize its environmental impact, without compromising the guaranteed high standards of reliability and performance. It is powered by electricity from renewable sources certified by the Guarantee of Origin (GO) standard.
Via San Clemente, 53 24036 Ponte San Pietro (BG)
Estimated average time by car. May vary depending on traffic.
Estimated average time by car. May vary depending on traffic.
Estimated average time by car. May vary depending on traffic.
Located within the campus, but detached from the data centers and with external access, the Aruba Auditorium is at the disposal of customers for their business conference and convention requirements. With seating for up to 400, this multipurpose venue also boasts a spacious foyer and well-equipped meeting rooms.
